A Beginner's Guide to Accurate Linear Measurements in Engineering and Physics

Updated on: 24 December,2024 04:41 PM IST  |  Mumbai
Buzz | sumit.zarchobe@mid-day.com

Linear measurement tools are essential for determining the dimensions of an object. These tools provide a way to quantify distance in a straight line.

A Beginner's Guide to Accurate Linear Measurements in Engineering and Physics

Linear Measurements

In engineering and physics, getting your measurements right is absolutely crucial. Accurate measurements are the foundation of successful designs, experiments, and analyses. Whether you're building a school project or a new home drawer, the tiniest millimetre can make all the difference.


Why Do We Need Linear Measurement Tools?

Linear measurement tools are essential for determining the dimensions of an object. These tools provide a way to quantify distance in a straight line, which is fundamental to many aspects of science, engineering, and everyday life.

Here are a few common measurement tools and their uses:

  • Rulers: These are the most basic linear measurement tools used for drawing straight lines and measuring short distances. They are commonly found in classrooms, offices, and homes.
  • Measuring Tapes: These flexible tools are ideal for measuring longer distances, such as the length of a room or the circumference of a tree. They are commonly used in construction, tailoring, and surveying.
  • Micrometers: These precision instruments are used to measure very small distances with high accuracy, often down to thousandths of an inch or hundredths of a millimetre. They are commonly used in machining, manufacturing, and scientific research.
  • Gauges: These specialised tools are designed to measure specific dimensions, such as the thickness of a sheet of metal or the diameter of a wire. They are commonly used in quality control and manufacturing processes.

While these tools are great at their intended purposes, the vernier caliper is often the go-to tool for linear measurement due to its versatility, precision, and ease of use across a wide range of applications.

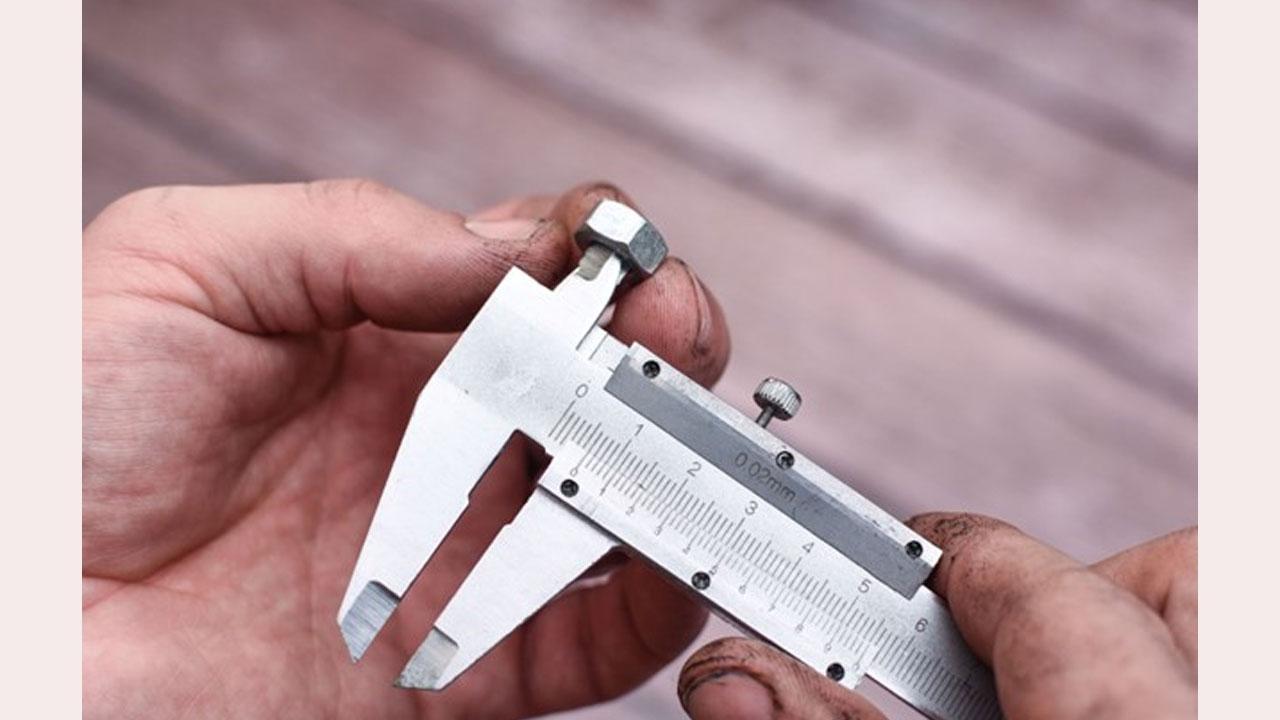

What is a Vernier Caliper

Named after French mathematician Pierre Vernier, a vernier caliper is often used to measure external and internal dimensions, depths, and step lengths with high accuracy because it incorporates a secondary scale (the vernier scale) that allows for more precise readings than a standard ruler. It consists of the following parts:

  • Main scale: Graduated in millimetres or inches.
  • Vernier scale: A sliding scale with finer graduations that allows for more precise readings.
  • Jaws: Used for measuring external dimensions.
  • Depth probe: Used to measure the depth of holes or recesses.

How to Read a Vernier Caliper

  1. Close the jaws lightly on the object being measured.
  2. Read the main scale value to the left of the zero mark on the vernier scale.
  3. Find the line on the vernier scale that aligns perfectly with a line on the main scale.
  4. The value on the vernier scale where the alignment occurs represents the decimal portion of your measurement.
  5. Add the main scale reading and the vernier scale reading to obtain the final measurement.

Digital vs Analogue Vernier Calipers

Vernier calipers come in both analogue and digital formats. The main difference lies in how the reading is displayed. Analogue calipers require the user to carefully read the main scale and vernier scale, which can be prone to parallax error and misinterpretation, while digital calipers use a screen with a numerical readout, reducing the chance of human error.

Digital vernier calipers offer several advantages over their analogue counterparts:

  • Ease of use: Digital readouts eliminate the need for interpreting vernier scales.
  • Increased speed: Measurements can be taken more quickly.
  • Data logging: Some digital calipers can store measurements for later analysis.

However, digital calipers can be more expensive and require batteries. Whether you need an analogue or digital vernier caliper comes down to ease of use, budget, and the level of precision needed for your application.

How to Calibrate and Maintain Your Vernier Caliper

Even the most precise instruments can lose accuracy over time. Regular calibration and proper maintenance are essential to ensure your vernier caliper continues to deliver reliable measurements.

How to Calibrate a Vernier Caliper

Calibration involves comparing your vernier caliper's readings against a known standard. This helps identify any deviations and allows for adjustments or corrections. Here's a simplified calibration process:

1. Zero Setting: Close the jaws of the caliper completely. The reading should be zero. If not, use the adjustment screw (usually found near the vernier scale) to set it to zero.

2. Standard Measurement: Use a calibrated gauge block or a known standard with precise dimensions (e.g., 10mm, 25mm). Measure the standard with your vernier caliper.

3. Compare and Adjust: Compare the caliper reading to the known dimension of the standard. If there's a discrepancy, consult your caliper's manual for instructions on making adjustments.

How to Maintain a Vernier Caliper

Proper care can significantly extend the life and accuracy of your vernier caliper:

  • Keep it Clean: Regularly wipe down the caliper with a soft cloth to remove dust, debris, and moisture.
  • Avoid Drops and Impacts: Dropping your caliper can damage the delicate measuring surfaces and internal mechanisms.
  • Store Properly: When not in use, store your caliper in a protective case, away from extreme temperatures and humidity.
  • Lubricate: Periodically lubricate the sliding surfaces with a light instrument oil to ensure smooth movement.

Make Accurate Linear Measurements Every Time

Accurate linear measurement is fundamental to both engineering and physics. Whether designing a bridge or conducting a scientific experiment, precise measurements ensure reliable results and functional creations. Even small inaccuracies can lead to significant errors, impacting project outcomes and safety. By understanding and correctly using tools like the vernier caliper, you can achieve the necessary precision for success in any field that demands accurate measurement.
